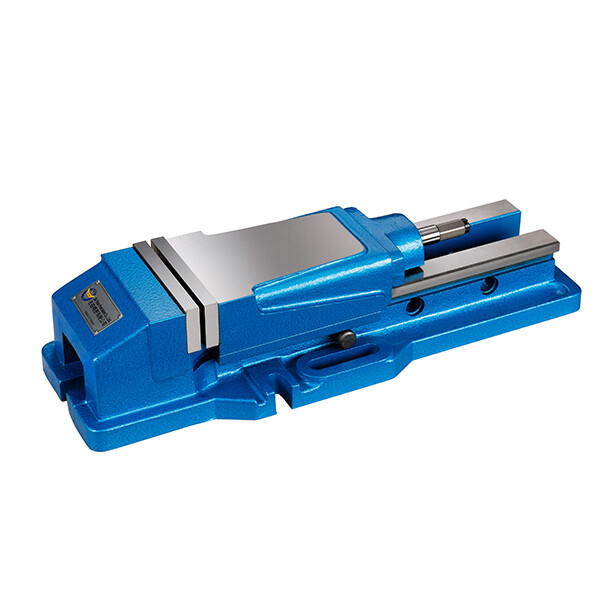

Hydraulic Machine Vice HV 150

SKU V-HV-150
R10 120.00
Pre-order
Price incl. VAT (15%) R1 320.00
Out of stock, available for pre-order
1
Customer reviews
No reviews yet. Only signed-in customers who bought this product can leave reviews. To leave a review, sign in
Share this product with your friends
Product Details

Click/Tap here for full Sec list PDF

Made In Taiwan

  1. Suitable For Vertical Machine Center, Milling Machine
  2. JAW Squareness 0.02mm
  3. Both JAW Plate Parallelism 0.015mm
  4. Parallelism Of Body Bottom Face And JAW Slideway 0.01mm
  5. Parallelism Of Guide Block Side Of Bottom Face And Fixed JAW Clamp Face 0.01mm

HYDRAULIC MACHINE VISE (BUILT-IN TYPE) ★ Pressure bust system. Patent number: M314660

Key Points:

  1. Most suitable for vertical machine center, milling machine.
  2. Vise body is made of high quality ductile cast iron resists bending.
  3. Pressure system for maximum clamping pressure with minimum force.
  4. 3 clamping ranges design: Quick to change and easy to operate.

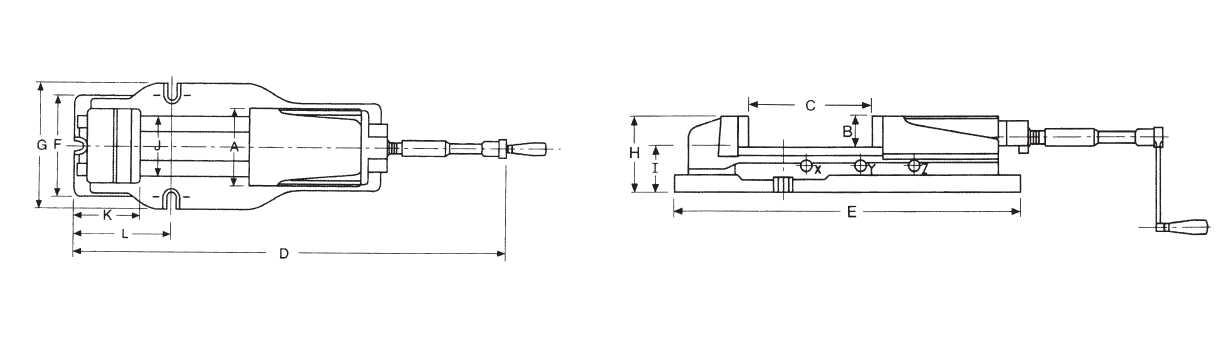

MODEL
A
B
C
D
E
F
G
H
I
J
K
L
Clamping Range Clamping Force Weight(kg)
X Y Z Table Disk Rotary
HV-100
105
36
170
525
440
135
170
95
58
80
95
147
0-57 55-114 112-170 2500kg 21 >7
HV-130
130
48
220
670
550
175
207
120
70.5
97
107
195
0-73 >72-146 145-220 3000kg 38 >8
HV-150
150
53
300
800
620
182
225
135
82.5
116
117
210
0-100 98-200 198-300 4500kg 53 11
HV-200
200
62
300
900
680
260
280
162
100
160
150
260
0-100 99-200 198-300 8000kg 95 13
Hydraulic Machine Vice HV 150
